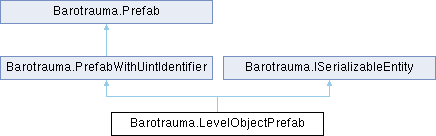

Inheritance diagram for Barotrauma.LevelObjectPrefab:

Classes
class	ChildObject

Public Types
enum	SpawnPosType { None = 0 , MainPathWall = 1 , SidePathWall = 2 , CaveWall = 4 , NestWall = 8 , RuinWall = 16 , SeaFloor = 32 , MainPath = 64 , LevelStart = 128 , LevelEnd = 256 , OutpostWall = 512 , Wall = MainPathWall \| SidePathWall \| CaveWall }

Public Member Functions
override string	ToString ()

	LevelObjectPrefab (ContentXElement element, LevelObjectPrefabsFile file, Identifier identifierOverride=default)

float	GetCommonness (CaveGenerationParams generationParams, bool requireCaveSpecificOverride=true)

float	GetCommonness (LevelData levelData)

override void	Dispose ()

Public Member Functions inherited from Barotrauma.Prefab
	Prefab (ContentFile file, Identifier identifier)

	Prefab (ContentFile file, ContentXElement element)

void	Dispose ()

Static Public Member Functions
static Identifier	ParseIdentifier (Identifier identifierOverride, XElement element)

Static Public Member Functions inherited from Barotrauma.Prefab
static void	DisallowCallFromConstructor ()

Public Attributes
readonly List< ContentXElement >	LevelTriggerElements

readonly Dictionary< Identifier, float >	OverrideCommonness
	Overrides the commonness of the object in a specific level type. Key = name of the level type, value = commonness in that level type.

Public Attributes inherited from Barotrauma.Prefab
readonly Identifier	Identifier

readonly ContentFile	ContentFile

Static Public Attributes
static readonly PrefabCollection< LevelObjectPrefab >	Prefabs = new PrefabCollection<LevelObjectPrefab>()

Static Public Attributes inherited from Barotrauma.Prefab
static readonly ImmutableHashSet< Type >	Types

Properties
List< Sprite >	Sprites = new List<Sprite>() `[get]`

DeformableSprite	DeformableSprite `[get]`

float	MinSize `[get]`

float	MaxSize `[get]`

Alignment	Alignment `[get]`
	Which sides of a wall the object can appear on.

SpawnPosType	SpawnPos `[get]`

XElement	Config `[get]`

XElement	PhysicsBodyElement `[get]`

int	PhysicsBodyTriggerIndex = -1 `[get]`

Dictionary< Sprite, XElement >	SpriteSpecificPhysicsBodyElements = new Dictionary<Sprite, XElement>() `[get]`

int	MaxCount `[get]`

Vector2	DepthRange `[get]`

float	ClusteringAmount `[get]`
	The tendency for the prefab to form clusters. Used as an exponent for perlin noise values that are used to determine the probability for an object to spawn at a specific position.

float	ClusteringGroup `[get]`
	A value between 0-1 that determines the z-coordinate to sample perlin noise from when determining the probability for an object to spawn at a specific position. Using the same (or close) value for different objects means the objects tend to form clusters in the same areas.

Vector2	RandomOffset `[get]`

bool	AlignWithSurface `[get]`

bool	AllowAtStart `[get]`

bool	AllowAtEnd `[get]`

float	MinSurfaceWidth `[get]`
	Minimum length of a graph edge the object can spawn on.

Vector2	RandomRotation `[get]`

Vector2	RandomRotationRad `[get]`

float	SwingAmount `[get]`

float	SwingAmountRad `[get]`

float	SwingFrequency `[get]`

Vector2	ScaleOscillation `[get]`

float	ScaleOscillationFrequency `[get]`

float	Commonness `[get]`

float	SonarDisruption `[get]`

bool	TakeLevelWallDamage `[get]`

bool	HideWhenBroken `[get]`

float	Health `[get]`

Color	SpriteColor `[get]`

string	Name `[get]`

List< ChildObject >	ChildObjects `[get]`

Dictionary< Identifier, SerializableProperty >	SerializableProperties `[get]`

List< LevelObjectPrefab >	OverrideProperties `[get]`
	A list of prefabs whose properties override this one's properties when a trigger is active. E.g. if a trigger in the index 1 of the trigger list is active, the properties in index 1 in this list are used (unless it's null)

Properties inherited from Barotrauma.PrefabWithUintIdentifier
UInt32	UintIdentifier `[get, set]`

Properties inherited from Barotrauma.Prefab
ContentPackage?	ContentPackage `[get]`

ContentPath	FilePath `[get]`

Properties inherited from Barotrauma.ISerializableEntity

Additional Inherited Members
Protected Member Functions inherited from Barotrauma.PrefabWithUintIdentifier
	PrefabWithUintIdentifier (ContentFile file, Identifier identifier)

	PrefabWithUintIdentifier (ContentFile file, ContentXElement element)

Protected Member Functions inherited from Barotrauma.Prefab
virtual Identifier	DetermineIdentifier (XElement element)

Member Enumeration Documentation

◆ SpawnPosType

enum Barotrauma.LevelObjectPrefab.SpawnPosType

Enumerator
None
MainPathWall
SidePathWall
CaveWall
NestWall
RuinWall
SeaFloor
MainPath
LevelStart
LevelEnd
OutpostWall
Wall

Constructor & Destructor Documentation

◆ LevelObjectPrefab()

Barotrauma.LevelObjectPrefab.LevelObjectPrefab	(	ContentXElement	element,
		LevelObjectPrefabsFile	file,
		Identifier	identifierOverride = default )

Member Function Documentation

◆ Dispose()

override void Barotrauma.LevelObjectPrefab.Dispose ( )

◆ GetCommonness() [1/2]

float Barotrauma.LevelObjectPrefab.GetCommonness	(	CaveGenerationParams	generationParams,
		bool	requireCaveSpecificOverride = true )

◆ GetCommonness() [2/2]

float Barotrauma.LevelObjectPrefab.GetCommonness ( LevelData levelData )

◆ ParseIdentifier()

static Identifier Barotrauma.LevelObjectPrefab.ParseIdentifier	(	Identifier	identifierOverride,
		XElement	element )

static

◆ ToString()

override string Barotrauma.LevelObjectPrefab.ToString ( )

Member Data Documentation

◆ LevelTriggerElements

readonly List<ContentXElement> Barotrauma.LevelObjectPrefab.LevelTriggerElements

◆ OverrideCommonness

readonly Dictionary<Identifier, float> Barotrauma.LevelObjectPrefab.OverrideCommonness

Overrides the commonness of the object in a specific level type. Key = name of the level type, value = commonness in that level type.

◆ Prefabs

readonly PrefabCollection<LevelObjectPrefab> Barotrauma.LevelObjectPrefab.Prefabs = new PrefabCollection<LevelObjectPrefab>()

static

Property Documentation

◆ Alignment

Alignment Barotrauma.LevelObjectPrefab.Alignment

get

Which sides of a wall the object can appear on.

◆ AlignWithSurface

bool Barotrauma.LevelObjectPrefab.AlignWithSurface

get

◆ AllowAtEnd

bool Barotrauma.LevelObjectPrefab.AllowAtEnd

get

◆ AllowAtStart

bool Barotrauma.LevelObjectPrefab.AllowAtStart

get

◆ ChildObjects

List<ChildObject> Barotrauma.LevelObjectPrefab.ChildObjects

get

◆ ClusteringAmount

float Barotrauma.LevelObjectPrefab.ClusteringAmount

get

The tendency for the prefab to form clusters. Used as an exponent for perlin noise values that are used to determine the probability for an object to spawn at a specific position.

◆ ClusteringGroup

float Barotrauma.LevelObjectPrefab.ClusteringGroup

get

A value between 0-1 that determines the z-coordinate to sample perlin noise from when determining the probability for an object to spawn at a specific position. Using the same (or close) value for different objects means the objects tend to form clusters in the same areas.

◆ Commonness

float Barotrauma.LevelObjectPrefab.Commonness

get

◆ Config

XElement Barotrauma.LevelObjectPrefab.Config

get

◆ DeformableSprite

DeformableSprite Barotrauma.LevelObjectPrefab.DeformableSprite

get

◆ DepthRange

Vector2 Barotrauma.LevelObjectPrefab.DepthRange

get

◆ Health

float Barotrauma.LevelObjectPrefab.Health

get

◆ HideWhenBroken

bool Barotrauma.LevelObjectPrefab.HideWhenBroken

get

◆ MaxCount

int Barotrauma.LevelObjectPrefab.MaxCount

get

◆ MaxSize

float Barotrauma.LevelObjectPrefab.MaxSize

get

◆ MinSize

float Barotrauma.LevelObjectPrefab.MinSize

get

◆ MinSurfaceWidth

float Barotrauma.LevelObjectPrefab.MinSurfaceWidth

get

Minimum length of a graph edge the object can spawn on.

◆ Name

string Barotrauma.LevelObjectPrefab.Name

get

Implements Barotrauma.ISerializableEntity.

◆ OverrideProperties

List<LevelObjectPrefab> Barotrauma.LevelObjectPrefab.OverrideProperties

get

A list of prefabs whose properties override this one's properties when a trigger is active. E.g. if a trigger in the index 1 of the trigger list is active, the properties in index 1 in this list are used (unless it's null)

◆ PhysicsBodyElement

XElement Barotrauma.LevelObjectPrefab.PhysicsBodyElement

get

◆ PhysicsBodyTriggerIndex

int Barotrauma.LevelObjectPrefab.PhysicsBodyTriggerIndex = -1

get

◆ RandomOffset

Vector2 Barotrauma.LevelObjectPrefab.RandomOffset

get

◆ RandomRotation

Vector2 Barotrauma.LevelObjectPrefab.RandomRotation

get

◆ RandomRotationRad

Vector2 Barotrauma.LevelObjectPrefab.RandomRotationRad

get

◆ ScaleOscillation

Vector2 Barotrauma.LevelObjectPrefab.ScaleOscillation

get

◆ ScaleOscillationFrequency

float Barotrauma.LevelObjectPrefab.ScaleOscillationFrequency

get

◆ SerializableProperties

Dictionary<Identifier, SerializableProperty> Barotrauma.LevelObjectPrefab.SerializableProperties

get

Implements Barotrauma.ISerializableEntity.

◆ SonarDisruption

float Barotrauma.LevelObjectPrefab.SonarDisruption

get

◆ SpawnPos

SpawnPosType Barotrauma.LevelObjectPrefab.SpawnPos

get

◆ SpriteColor

Color Barotrauma.LevelObjectPrefab.SpriteColor

get

◆ Sprites

List<Sprite> Barotrauma.LevelObjectPrefab.Sprites = new List<Sprite>()

get

◆ SpriteSpecificPhysicsBodyElements

Dictionary<Sprite, XElement> Barotrauma.LevelObjectPrefab.SpriteSpecificPhysicsBodyElements = new Dictionary<Sprite, XElement>()

get

◆ SwingAmount

float Barotrauma.LevelObjectPrefab.SwingAmount

get

◆ SwingAmountRad

float Barotrauma.LevelObjectPrefab.SwingAmountRad

get

◆ SwingFrequency

float Barotrauma.LevelObjectPrefab.SwingFrequency

get

◆ TakeLevelWallDamage

bool Barotrauma.LevelObjectPrefab.TakeLevelWallDamage

get

The documentation for this class was generated from the following file:

/home/runner/work/Luatrauma.Docs/Luatrauma.Docs/libs/LuaCsForBarotrauma/Barotrauma/BarotraumaShared/SharedSource/Map/Levels/LevelObjects/LevelObjectPrefab.cs
