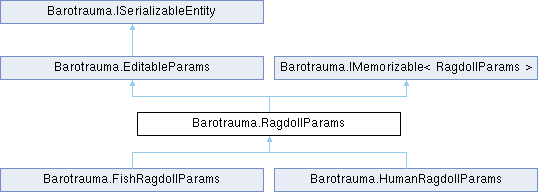

Inheritance diagram for Barotrauma.RagdollParams:

Classes
class	AttackParams

class	ColliderParams

class	DamageModifierParams

class	DecorativeSpriteParams

class	DeformationParams

class	DeformSpriteParams

class	JointParams

class	LightSourceParams

class	LimbParams

class	SoundParams

class	SpriteParams

class	SubParam

Public Member Functions
bool	Save (string fileNameWithoutExtension=null)

void	Apply ()
	Applies the current properties to the xml definition without saving to file.

override bool	Reset (bool forceReload=false)
	Resets the current properties to the xml (stored in memory). Force reload reloads the file from disk.

bool	Deserialize (XElement element=null, bool alsoChildren=true, bool recursive=true)

bool	Serialize (XElement element=null, bool alsoChildren=true, bool recursive=true)

void	TryApplyVariantScale (XDocument variantFile)

void	StoreSnapshot ()

void	Undo ()

void	Redo ()

void	ClearHistory ()

Public Member Functions inherited from Barotrauma.EditableParams
virtual bool	Save (string fileNameWithoutExtension=null, System.Xml.XmlWriterSettings settings=null)

Public Member Functions inherited from Barotrauma.IMemorizable< RagdollParams >
void	StoreSnapshot ()

void	Undo ()

void	Redo ()

void	ClearHistory ()

Static Public Member Functions
static string	GetDefaultFileName (Identifier speciesName)

static string	GetDefaultFile (Identifier speciesName, ContentPackage contentPackage=null)

static string	GetFolder (Identifier speciesName, ContentPackage contentPackage=null)

static T	GetDefaultRagdollParams< T > (Character character)

static T	GetDefaultRagdollParams< T > (Identifier speciesName, CharacterParams characterParams, ContentPackage contentPackage)

static T	GetDefaultRagdollParams< T > (Identifier speciesName, XElement characterRootElement, ContentPackage contentPackage)

static T	GetRagdollParams< T > (Identifier speciesName, Identifier ragdollSpecies, Either< string, ContentPath > file, ContentPackage contentPackage)

static T	CreateDefault< T > (string fullPath, Identifier speciesName, XElement mainElement)
	Creates a default ragdoll for the species using a predefined configuration. Note: Use only to create ragdolls for new characters, because this overrides the old ragdoll!

static void	ClearCache ()

Static Public Attributes
const float	MIN_SCALE = 0.1f

const float	MAX_SCALE = 2

Protected Member Functions
IEnumerable< SubParam >	GetAllSubParams ()

override void	UpdatePath (ContentPath fullPath)

bool	Load (ContentPath file, Identifier speciesName)

void	CreateColliders ()

void	CreateLimbs ()

void	CreateJoints ()

Protected Member Functions inherited from Barotrauma.EditableParams
ContentXElement	CreateElement (string name, params object[] attrs)

virtual string	GetName ()

virtual bool	Deserialize (XElement element=null)

virtual bool	Serialize (XElement element=null)

virtual bool	Load (ContentPath file)

Properties
Identifier	SpeciesName `[get]`

string	Texture `[get, set]`

Color	Color `[get, set]`

float	SpritesheetOrientation `[get, set]`

bool	IsSpritesheetOrientationHorizontal `[get]`

float	LimbScale `[get, set]`

float	JointScale `[get, set]`

float	TextureScale `[get, set]`
	Can be used for scaling the textures without having to readjust the entire ragdoll. Note that we'll still have to readjust the source rects and the colliders sizes, unless we also adjust SourceRectScale. E.g. for upscaling the textures 2x, set TextureScale to 0.5 and SourceRectScale to 2.

float	SourceRectScale `[get, set]`
	Multiplies both the position and the size of the source rects. Used for scaling the textures when we cannot/don't want to touch the source rect definitions (e.g. on variants).

float	ColliderHeightFromFloor `[get, set]`

float	ImpactTolerance `[get, set]`

CanEnterSubmarine	CanEnterSubmarine `[get, set]`

bool	CanWalk `[get, set]`

bool	Draggable `[get, set]`

LimbType	MainLimb `[get, set]`

List< ColliderParams >	Colliders = new List<ColliderParams>() `[get]`

List< LimbParams >	Limbs = new List<LimbParams>() `[get]`

List< JointParams >	Joints = new List<JointParams>() `[get]`

Memento< RagdollParams >	Memento = new Memento<RagdollParams>() `[get, protected set]`

Properties inherited from Barotrauma.EditableParams
bool	IsLoaded `[get, protected set]`

string	Name `[get]`

string	FileName `[get]`

string	FileNameWithoutExtension `[get]`

string	Folder `[get]`

ContentPath	Path = ContentPath.Empty `[get, protected set]`

Dictionary< Identifier, SerializableProperty >	SerializableProperties `[get, protected set]`

virtual ContentXElement	MainElement `[get]`

ContentXElement	OriginalElement `[get, protected set]`

Properties inherited from Barotrauma.ISerializableEntity
Properties inherited from Barotrauma.IMemorizable< RagdollParams >
Memento< T >	Memento `[get]`

Additional Inherited Members
Protected Attributes inherited from Barotrauma.EditableParams
ContentXElement	rootElement

XDocument	doc

Member Function Documentation

◆ Apply()

void Barotrauma.RagdollParams.Apply ( )

Applies the current properties to the xml definition without saving to file.

◆ ClearCache()

static void Barotrauma.RagdollParams.ClearCache ( )

static

◆ ClearHistory()

void Barotrauma.RagdollParams.ClearHistory ( )

◆ CreateColliders()

void Barotrauma.RagdollParams.CreateColliders ( )

protected

◆ CreateDefault< T >()

static T Barotrauma.RagdollParams.CreateDefault< T >	(	string	fullPath,
		Identifier	speciesName,
		XElement	mainElement )

static

Creates a default ragdoll for the species using a predefined configuration. Note: Use only to create ragdolls for new characters, because this overrides the old ragdoll!

Type Constraints

T	:	RagdollParams
T	:	new()

◆ CreateJoints()

void Barotrauma.RagdollParams.CreateJoints ( )

protected

◆ CreateLimbs()

void Barotrauma.RagdollParams.CreateLimbs ( )

protected

◆ Deserialize()

bool Barotrauma.RagdollParams.Deserialize	(	XElement	element = null,
		bool	alsoChildren = true,
		bool	recursive = true )

◆ GetAllSubParams()

IEnumerable< SubParam > Barotrauma.RagdollParams.GetAllSubParams ( )

protected

◆ GetDefaultFile()

static string Barotrauma.RagdollParams.GetDefaultFile	(	Identifier	speciesName,
		ContentPackage	contentPackage = null )

static

◆ GetDefaultFileName()

static string Barotrauma.RagdollParams.GetDefaultFileName ( Identifier speciesName )

static

◆ GetDefaultRagdollParams< T >() [1/3]

static T Barotrauma.RagdollParams.GetDefaultRagdollParams< T > ( Character character )

static

Type Constraints

T	:	RagdollParams
T	:	new()

◆ GetDefaultRagdollParams< T >() [2/3]

static T Barotrauma.RagdollParams.GetDefaultRagdollParams< T >	(	Identifier	speciesName,
		CharacterParams	characterParams,
		ContentPackage	contentPackage )

static

Type Constraints

T	:	RagdollParams
T	:	new()

◆ GetDefaultRagdollParams< T >() [3/3]

static T Barotrauma.RagdollParams.GetDefaultRagdollParams< T >	(	Identifier	speciesName,
		XElement	characterRootElement,
		ContentPackage	contentPackage )

static

Type Constraints

T	:	RagdollParams
T	:	new()

◆ GetFolder()

static string Barotrauma.RagdollParams.GetFolder	(	Identifier	speciesName,
		ContentPackage	contentPackage = null )

static

◆ GetRagdollParams< T >()

static T Barotrauma.RagdollParams.GetRagdollParams< T >	(	Identifier	speciesName,
		Identifier	ragdollSpecies,
		Either< string, ContentPath >	file,
		ContentPackage	contentPackage )

static

Type Constraints

T	:	RagdollParams
T	:	new()

◆ Load()

bool Barotrauma.RagdollParams.Load	(	ContentPath	file,
		Identifier	speciesName )

protected

◆ Redo()

void Barotrauma.RagdollParams.Redo ( )

◆ Reset()

override bool Barotrauma.RagdollParams.Reset ( bool forceReload = false )

virtual

Resets the current properties to the xml (stored in memory). Force reload reloads the file from disk.

Reimplemented from Barotrauma.EditableParams.

◆ Save()

bool Barotrauma.RagdollParams.Save ( string fileNameWithoutExtension = null )

◆ Serialize()

bool Barotrauma.RagdollParams.Serialize	(	XElement	element = null,
		bool	alsoChildren = true,
		bool	recursive = true )

◆ StoreSnapshot()

void Barotrauma.RagdollParams.StoreSnapshot ( )

◆ TryApplyVariantScale()

void Barotrauma.RagdollParams.TryApplyVariantScale ( XDocument variantFile )

◆ Undo()

void Barotrauma.RagdollParams.Undo ( )

◆ UpdatePath()

override void Barotrauma.RagdollParams.UpdatePath ( ContentPath fullPath )

protectedvirtual

Reimplemented from Barotrauma.EditableParams.

Member Data Documentation

◆ MAX_SCALE

const float Barotrauma.RagdollParams.MAX_SCALE = 2

static

◆ MIN_SCALE

const float Barotrauma.RagdollParams.MIN_SCALE = 0.1f

float Barotrauma.RagdollParams.SourceRectScale

getset

Multiplies both the position and the size of the source rects. Used for scaling the textures when we cannot/don't want to touch the source rect definitions (e.g. on variants).

◆ SpeciesName

Identifier Barotrauma.RagdollParams.SpeciesName

get

◆ SpritesheetOrientation

float Barotrauma.RagdollParams.SpritesheetOrientation

getset

◆ Texture

string Barotrauma.RagdollParams.Texture

getset

◆ TextureScale

float Barotrauma.RagdollParams.TextureScale

getset

Can be used for scaling the textures without having to readjust the entire ragdoll. Note that we'll still have to readjust the source rects and the colliders sizes, unless we also adjust SourceRectScale. E.g. for upscaling the textures 2x, set TextureScale to 0.5 and SourceRectScale to 2.

The documentation for this class was generated from the following file:

/home/runner/work/Luatrauma.Docs/Luatrauma.Docs/libs/LuaCsForBarotrauma/Barotrauma/BarotraumaShared/SharedSource/Characters/Params/Ragdoll/RagdollParams.cs
